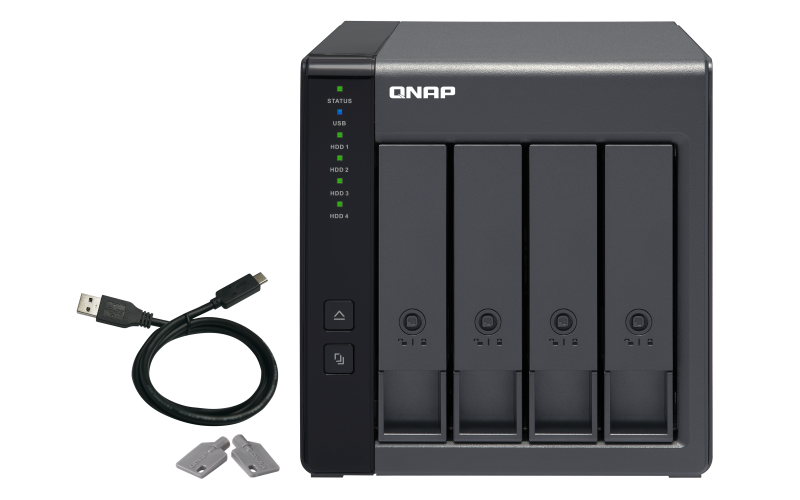

TR-004 — Key Specifications

Drive Bay

4 x 3.5-inch The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/

Drive Compatibility

3.5-inch SATA 3Gb/s slot (supports SATA 6Gb/s hard drives with backward compatibility, performance limited to 3Gb/s) 2.5-inch SATA 3Gb/s slot (supports SATA 6Gb/s hard drives with backward compatibility, performance limited to 3Gb/s) 2.5-inch SATA 3Gb/s slot (supports SATA 6Gb/s solid state drives with backward compatibility, performance limited to 3Gb/s) You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. TR-004 does not support the QDA-A2AR/ QDA-A2MAR.

USB 3.2 Gen 1 Port

1 x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1)

Form Factor

Tower

Dimensions (HxWxD)

6.63 × 6.31 × 8.62 inch Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net)

7.01 lbs

Power Consumption: HDD Sleep Mode

4.17 W

Standard Warranty

2
